ENGINE CRANE 2 TON HYDRAULIC''PROEQUIP''

DESCRIPTION:

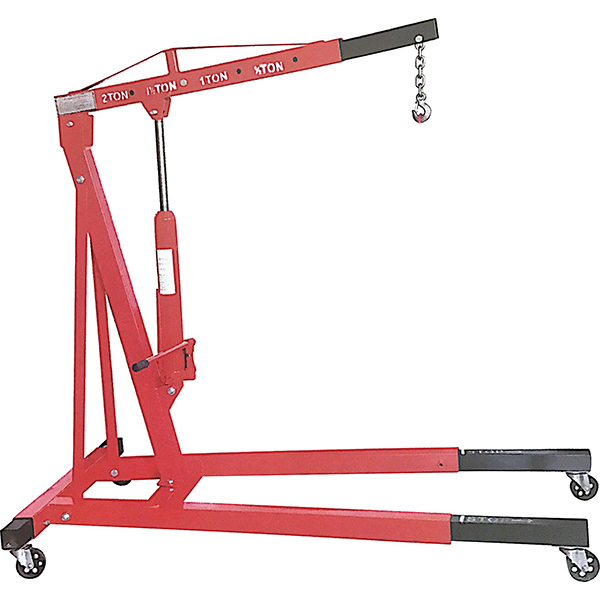

PE1149 | 2.0T Capacity Workshop Engine Crane

For raising, lowering and transporting of automotive engines and other heavy shop loads. Includes long reach ram, chain and hook with retractable legs.

Features:

• Heavy duty welded construction with rugged reinforced tubular steel.

• Metered control release valve for lowering boom at a precisely-controlled rate of speed.

• Special 8 Ton hydraulic long reach ram is equipped with a patented built-in by-pass mechanism. Specification:

• Maximum Capacity: 2 Ton (1800kg)

• Adjustable Reinforced Boom – 1/2 Ton, 1 Ton, 1-1/2 Ton & 2 Ton

• Boom Length – 1/2 Ton (1830mm), 1 Ton (1600mm), 1-1/2 Ton (1380mm) & 2 Ton (1149mm)

• Max. Hook Height – 1/2 Ton (2180mm), 1 Ton (2045mm), 1-1/2 Ton (1900mm) & 2 Ton (1760mm)

• Lifting Range – 0 to 2180mm (at 1/2 Ton Lift)

• 4 cast iron swivel wheel castors

• Clevis grab hook with safety latch

• Base Length: 1560-240mm

• Base Width (Front): 800-990mm

• Base Width (Rear): 695-1200mm

Manufactured to ANSI Specification. Approved to ASME PALD-2009.
