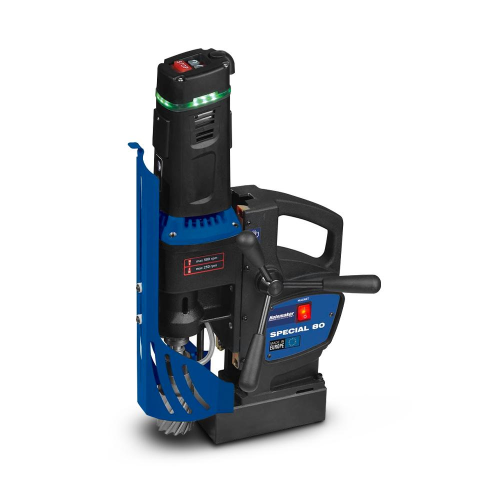

HOLEMAKER SPECIAL 80 MAGNETIC BASE DRILL 1500W/2 Speed

Description

HMSPECIAL80 | Holemaker Special 80 Magnetic Base Drill 1500W/2 Speed

Features
#3 MORSE TAPER, VERSATILE DRILLING & TAPPING MACHINE

The Holemaker Special 80 is a highly versatile European made machine for professional drilling and tapping applications, featuring the latest innovations in drilling machine technology. The machine’s forward & reverse work modes with variable speed adjustment allows thread cutting up to M24 of through holes and blind holes.

• New generation Italian made motor
• Intelligent speed control system maintains stable speed regardless of load changes
• Electronic Variable Speed Control
• Electronic clutch
• Overload and Overheat protection
• Tilt sensor stops the motor in cases of machines break away
• 360-degree visual monitoring system indicates current condition of the drill and gives safety and diagnostic information e.g. worn brushes
• Intuitive control panel at top of the drill
• Very light weight
• Supplied in a durable blow mould carry case with cutter guard & safety strap

Specifications
• Capacity ( Diameter ): 80mm
• Capacity ( Depth ): 110mm
• Twist drill capacity: 25mm
• Tap capacity: M24
• #3 Morse Taper spindle
• 1500 Watt 240V motor
• 2 Speed variable gearbox (120-190 / 290-450rpm)
• Lightweight, only 18kg
• 11000Nm Magnetic dead lift on 25mm steel plate
• 190mm Stroke
• Height 554mm min / 744mm max
